Naturally Ventilated Manufacturing Halls Jakob Factory in Vietnam
The Jakob Factory project offered the design partnership of rollimarchini architekten from Bern and Swiss-born G8A Architects the unique opportunity
The Jakob Factory project offered the design partnership of rollimarchini architekten from Bern and Swiss-born G8A Architects the unique opportunity to propose a highly innovative and highly specific manufacturing space, set to become a design reference for tropical sustainable architecture. The factory houses the specialist steel rope producers Jakob Rope Systems, a high-quality manufacturing organization, specializing in custom made steel meshing used for scales of private to industrial usage. The Jakob Factory proposal was seen as a unique opportunity for rollimarchini and G8A to propose an alternative to these detrimental practices, presenting a strategically land saving project with focus elements of passive design.

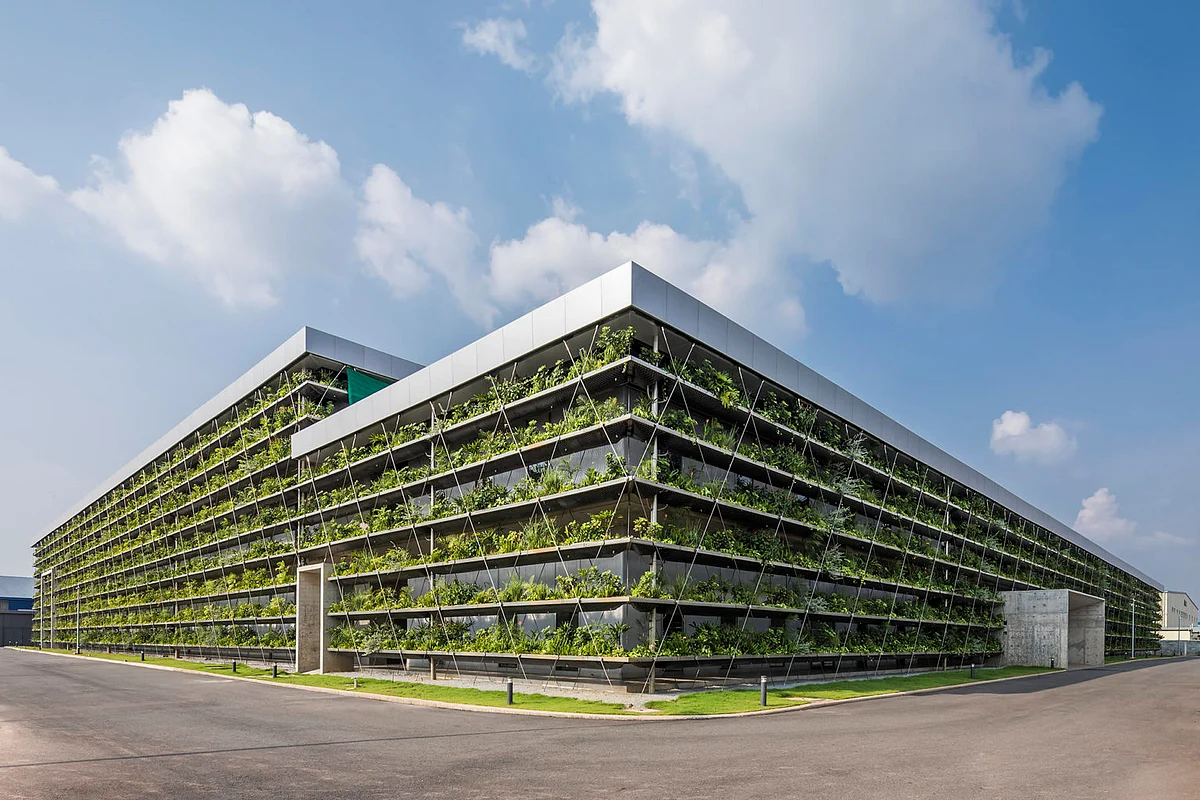

Proposing an environmentally friendly alternative to the typically horizontally spread manufacturing buildings. Jakob Factory offers an innovative vertical densification strategy, stacking the usable zones on superimposed slats. This robust design avoids unnecessary ground usage negating needless land development, while also offering workers agreeable outdoor spaces. However, the proposition necessitates the imposing facades taking on important functions; having to provide both shading and rain protection, a service previously asked from roofing. Taking reference from the traditional tropical architecture of the region the design has developed with porous façade devised as a lush-plantation “skin”, the suspended structure is supported by a two-layer rope network stretched from the ground to the roof. The horizontal geotextile planters not only filter rain and sun, but also contribute to lowering the atmospheric temperature through evaporation, acting as air purifiers and dust particle binders.
The intelligent distribution of work spaces combined with the plantation façade and completely modular interior walls provide a comfortable working space, a pioneering initiative as Jakob Factory becomes the first project in Vietnam proposing completely naturally ventilated manufacturing halls.
